INDUSTRIAL CNC ROUTER BITS FOR ACRYLIC, ACP & FABRICATION

SPIL CNC Router Bits by Sabin Plastic Industries LLC are precision-ground carbide tools. They are designed for routing acrylic, ACP, PVC foam (Forex), wood, MDF, and aluminum. Engineers designed these CNC router bits for professional fabrication environments and high-precision routing.

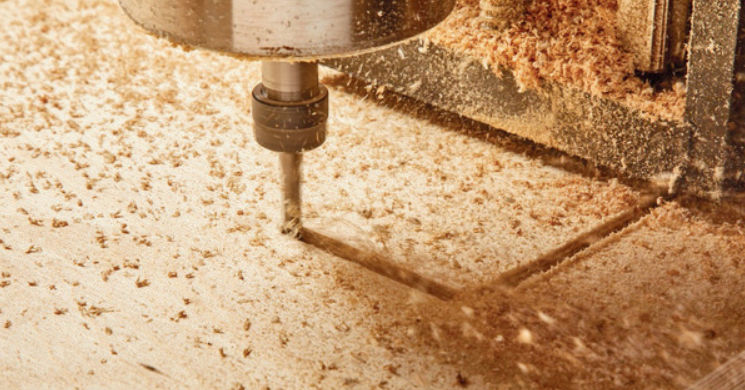

tools_carousel_1

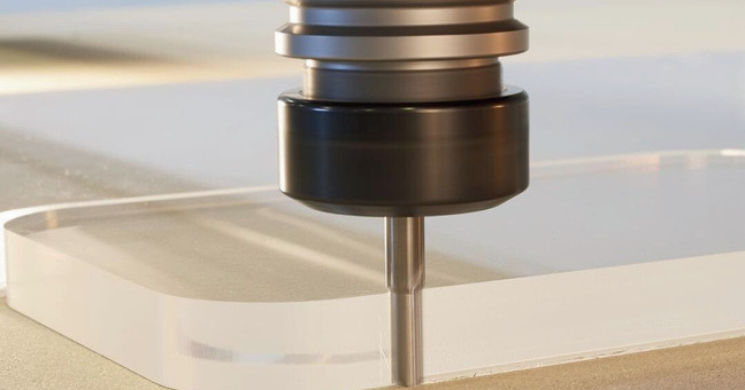

tools_carousel_2

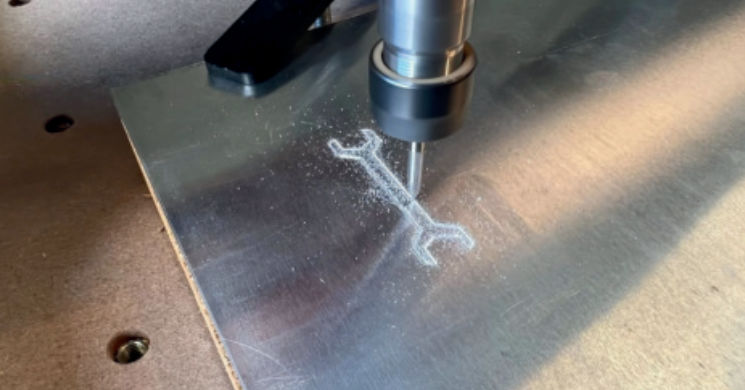

tools_carousel_3

Correct tool selection directly impacts:

  • Edge finish quality
  • Spindle load
  • Chip evacuation
  • Heat control
  • Overall machining performance

SPIL tooling solutions are structured specifically for signage fabrication and industrial routing environments – not general-purpose retail tooling. As a trusted CNC router bits supplier in the UAE, SPIL focuses on performance-driven tooling.

SPIL is also a provider of industrial CNC tools in the UAE.

For tool selection guidance based on material and spindle configuration, contact our technical team.

HOW TO READ SPIL TOOL SPECIFICATIONS

Each tool is defined by four key dimensions:

A – Width of cut (cutting diameter)

B – Length of cut (maximum cutting depth)

C – Shank diameter (collet size)

D – Total tool length

Flute refers to the number of cutting edges:

1F – Single Flute

2F – Double Flute

Tool Code Example

BIT-XYZ-1F-WA

X → Width of cut

YZ → Length of cut

1F / 2F → Number of flutes

W → Wood / MDF / Forex

A → Acrylic

M → Aluminium / ACP

This coding structure helps identify the right tool based on material and shape. It supports selecting router bits for CNC machine use.

1 FLUTE CUTTING BITS – PLASTICS & ACRYLIC

Single flute tools are optimized for:

  • Acrylic
  • ABS
  • HDPE
  • PVC Foam (Forex)
  • General plastics

They provide:

  • Better chip evacuation
  • Reduced melting in acrylic
  • Cleaner edge finish
  • Higher feed rates

These cnc router bits are widely used in signage manufacturing and plastic sheet machining.

Available configurations include:

  • 3mm, 4mm, 6mm diameter options
  • Cut lengths from 12mm to 32mm
  • Shank sizes matching ER collet standards

Example tool codes:

BIT-312-1F-WA, BIT-412-1F-WA, BIT-622-1F-WA

1 FLUTE CUTTING BITS – ALUMINIUM & ACP

Designed specifically for:

  • Aluminium
  • Aluminium Composite Panels (ACP)

These router bits for cnc machine metal cutting applications are optimized for controlled chip evacuation and stable feed rates.

A titanium coating coats them to reduce heat build-up and improve cutting efficiency when machining aluminium.

Example configurations:

4mm – 8mm – 4mm – 50mm

6mm – 15mm – 6mm – 50mm

Example tool codes:

BIT-408-1F-M, BIT-615-1F-M

2 FLUTE BITS – HARDWOOD & MDF

Double flute tools are suitable for:

  • Solid wood
  • Hardwood
  • MDF

They provide:

  • Smooth finish on wood surfaces
  • Stable cutting at moderate RPM
  • Better material compression control

These tools are part of SPIL’s professional range from a leading CNC cutting tool supplier in the UAE. They support woodworking and fabrication industries.

Available sizes include:

  • 3mm, 4mm, 6mm diameters
  • Cut lengths up to 32mm

Example tool codes:

BIT-312-2F-W, BIT-622-2F-W

SURFACE BIT

Surface bit options:

22mm and 30mm bottom cutting diameter

6mm shank

Suitable for:

  • MDF
  • Hardwood
  • Plywood
  • Laminated wood

Used for surface levelling and panel flattening in woodworking and fabrication environments using industrial cnc router bits.

Reference: BIT-SURFACE-630-W

CNC SPRING COLLETS

SPIL supplies precision CNC spring collets:

ER25 – 3mm / 4mm / 6mm

ER32 – 3mm / 4mm / 6mm

Collets ensure:

  • Accurate tool clamping
  • Reduced vibration
  • Stable high-RPM performance

(ER25 & ER32 series codes available in catalogue)

These components support reliable performance for router bits for cnc machine operations.

MATERIAL COMPATIBILITY OVERVIEW

Material → Recommended Tool Type

Cast Acrylic → 1 Flute

Extruded Acrylic → 1 Flute

PVC Foam Board (Forex) → 1 Flute

Aluminium / ACP → 1 Flute (Metal)

MDF / Hardwood → 2 Flute

Surface Levelling → Surface Bit

Correct tool geometry ensures optimal chip evacuation and clean edge finish when using professional cnc router bits.

BULK SUPPLY & WORKSHOP SUPPORT – UAE

SPIL CNC Bits are available for:

  • Workshop restocking
  • Bulk supply
  • Material-specific tooling
  • Spindle compatibility guidance

As a reliable cnc router bits supplier in the UAE, SPIL supports workshops with industrial-grade tooling solutions.

Our technical team recommends tooling based on:

  • Material type
  • Sheet thickness
  • Spindle power
  • Feed rate

We support signage workshops, fabrication facilities, and industrial routing sites across the UAE. We provide high-performance industrial CNC tools and precision CNC cutting tool supply solutions.

REQUEST TOOL PRICING

For CNC bit pricing, bulk supply options, and technical tips, contact Sabin Plastic Industries LLC.

Include your machine model and material type.
