TESA Tapes

Adhesive Tape is used in many different applications with new uses being discovered every year. The usage and diversity of tape will continue to grow as a solution to fastening and joining due to advances in adhesive technology, ease of use, and its low cost compared to traditional fastening systems. There are many reasons that speak for the use of double-sided adhesive tape: Freedom of design, quality of the bond, and the assembly process to name a few. However, the true advantages of these tapes become particularly clear if you compare the double-sided adhesive tapes with other mounting methods. .

Features

  1. Versatile adhesive for high immediate adhesion on numerous substrates
  2. Fully outdoor suitable: UV, water and ageing resistant
  3. Compensates for differing thermal expansion of dissimilar materials
  4. High immediate bonding strength even at low bonding pressure
  5. Very good cold shock absorbtion
  6. Suitability for most demanding applications such as heavy stress, high temperatures or critical substrates

tesa® 4934

Double-sided fabric tape

tesa® 4934 is a double-sided tape. It consists of a fabric backing with a thick, tacky adhesive coating. The synthetic rubber adhesive is solvent free.
tesa® 4934 is a general purpose mounting tape.
tesa® 4934 is easily hand tearable.

Applications

Specifications

Items Specifications
Backing material cloth
Color white
Total thickness 200 μm
Type of adhesive synthetic rubber
Elongation at break 20 %
Tensile strength 35 N/cm
Type of liner glassine

tesa® 4952

1150 μm double sided PE foam tape

tesa® 4952 is a double sided PE foam tape for constructive mounting applications. It consists of a highly conformable PE foam backing and a tackified acrylic adhesive. tesa® 4952 has been externally certified for furniture mirror mounting.

Applications

Specifications

Items Specifications
Backing material PE foam
Color white
Total thickness 1150 µ
Type of adhesive tackified acrylic
Elongation at break 200 %
Tensile strength 10 N/cm
Type of liner glassine

tesa® 4957

1100 μm double-sided PE foam tape

tesa® 4957 is a double sided PE foam tape for general mounting applications. It consists of a highly conformable PE foam backing and a tackified acrylic adhesive. tesa® 4957 has been externally certified for window bar mounting.

Applications

Specifications

Items Specifications
Backing material PE foam
Color black/white
Total thickness 1100 μm
Type of adhesive tackified acrylic
Elongation at break 200 %
Tensile strength 6 N/cm

tesa® 4965

205μm double sided transparent filmic tape

tesa® 4965 is a transparent double-sided self-adhesive tape consisting of a PET backing and a tackyfied acrylic adhesive.
tesa® 4965 features especially:
▪ Reliable bond even to LSE substrates
▪ Immediate usability right after assembly
▪ Suitability for most demanding applications such as heavy stress, high temperatures or critical substrates

Applications

Specifications

Items Specifications
Backing material PET film
Color transparent
Total thickness 205 μm
Type of adhesive tackified acrylic
Elongation at break 50 %
Tensile strength 20 N/cm

tesa® 4985

Tacky transfer tape

tesa® 4985 is a transparent transfer tape using a modified acrylic adhesive. It offers good immediate grab to uneven surfaces.
tesa® 4985 features especially:
▪ Excellent conformability due to transfer tape construction
▪ Good dispensing properties

Applications

Specifications

Items Specifications
Backing material none
Color of linear brown
Total thickness 50 μm
Type of adhesive tackified acrylic
Thickness of liner 71 μm
Weight of liner 80 g/m²
Type of liner glassine

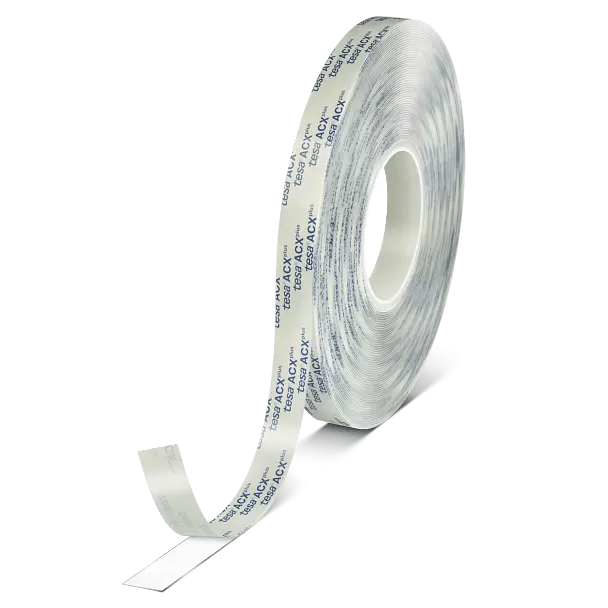

tesa® ACXplus 7055 High Transparency

1,000 μm double-sided acrylic core tape

tesa® ACXplus 7055 is a double-sided transparent acrylic core tape. It consists of a high-performance acrylic system and is primarily characterised by its Bonding Power, Stress Dissipation and its Temperature and Weather Resistance.
Due to the high transparency it is especially suitable for constructive bonding of transparent and translucent materials such as glass or acrylic.
The visco-elastic, solid acrylic core compensates different thermal elongation of bonded parts.

Applications

Bonding of panels and reinforcement bars in the following Industries:

Specifications

Items Specifications
Backing material solid acrylic
Color transparent
Total thickness 1000 μm
Type of adhesive pure acrylic
Elongation at break 1000 %

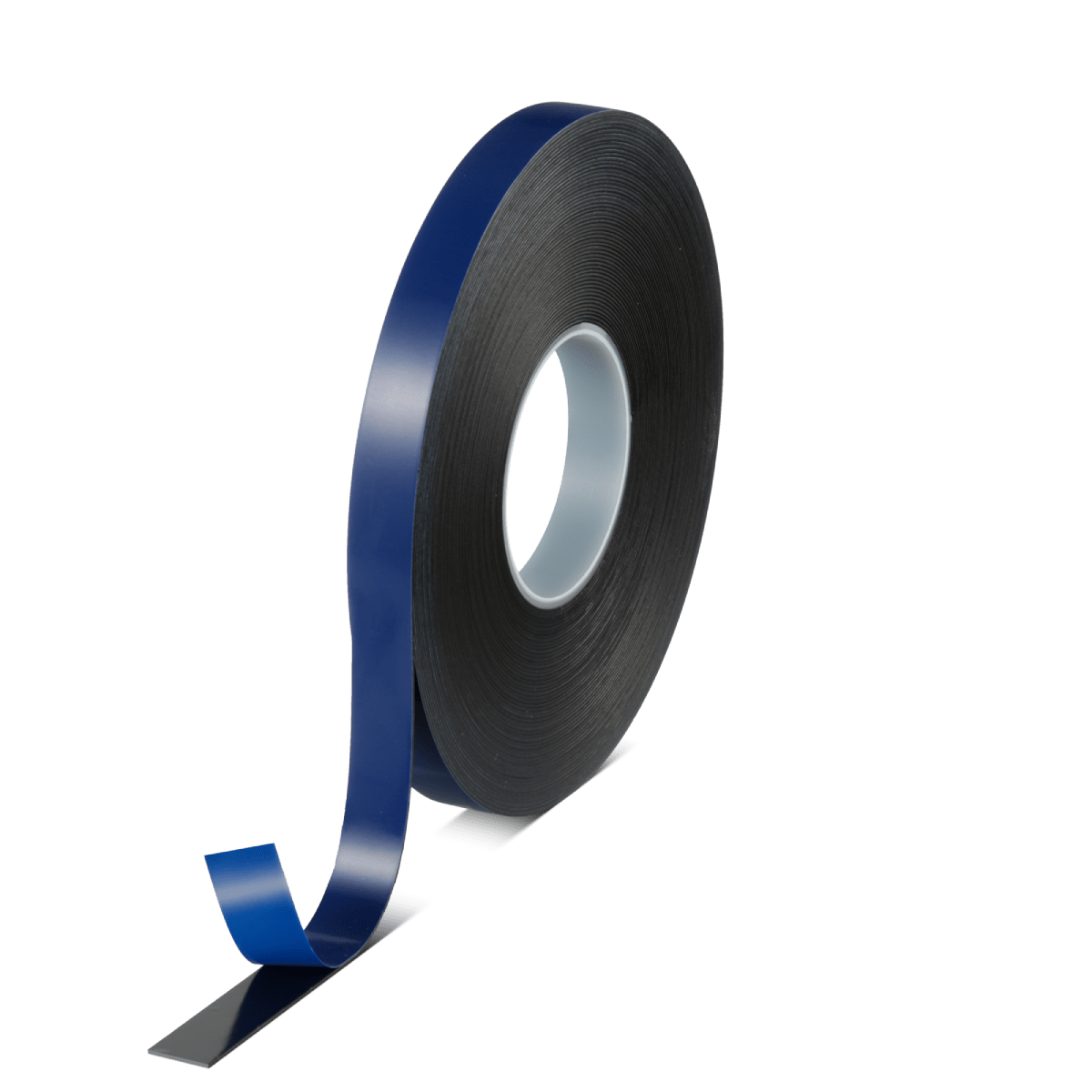

tesa® ACXplus 7074 High Resistance

1,000 μm double-sided acrylic foam tape

tesa® ACXplus 7074 is a deep black acrylic foam tape. It consists of a high-performance acrylic system and due to its unique components it combines a very good temperature resistance with an outstanding cold shock resistance up to -40°C. It is designed for demanding outdoor bonding applications especially in combination with the tesa Adhesion Promoters. The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.

Applications

Bonding of transparent and translucent materials in the following Industries:

Specifications

Items Specifications
Backing material foamed acrylic
Color deep black
Total thickness 1000 μm
Type of adhesive pure acrylic
Elongation at break 1000 %

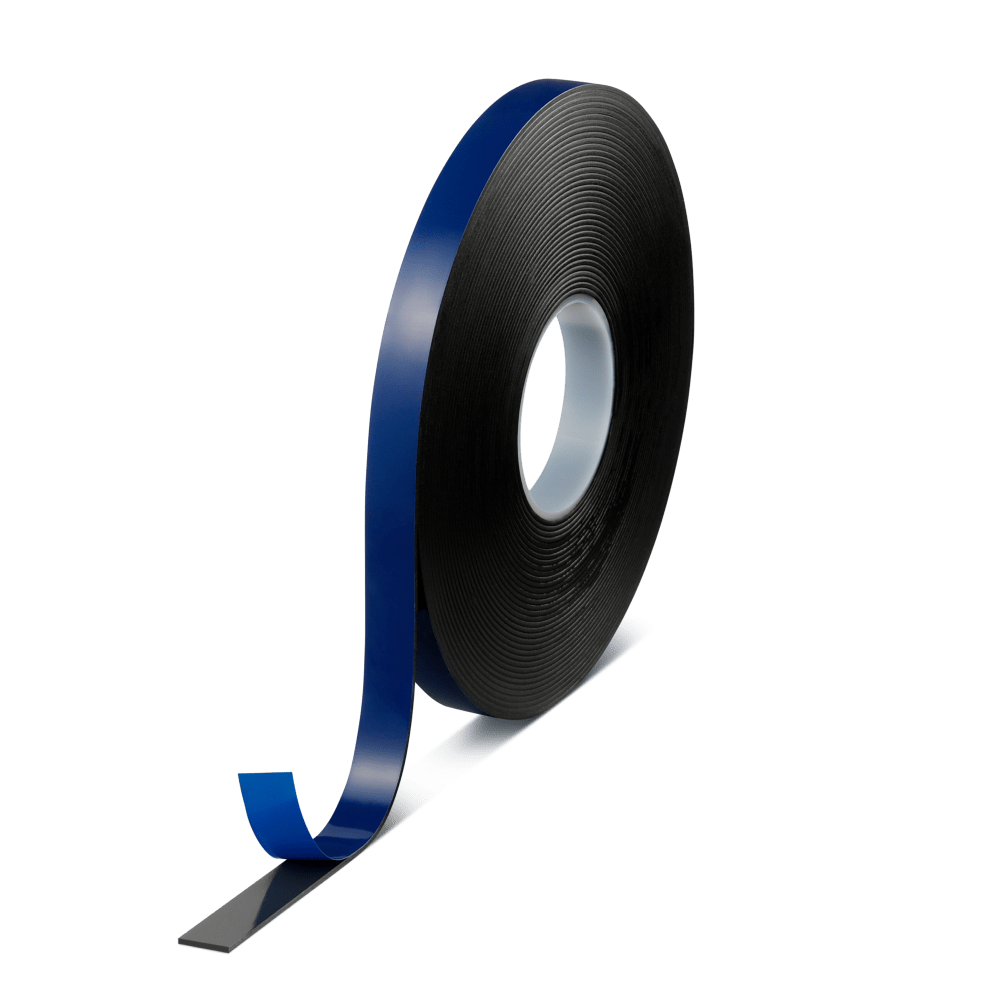

tesa® ACXplus 7078 High Resistance

2,000 μm double-sided acrylic foam tape

tesa® ACXplus 7078 is a deep black acrylic foam tape. It consists of a high-performance acrylic system and due to its unique components it combines a very good temperature resistance with an outstanding cold shock resistance up to -40°C. It is designed for demanding outdoor bonding applications especially in combination with the tesa Adhesion Promoters. The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.

Applications

Bonding of transparent and translucent materials in the following Industries:

Specifications

Items Specifications
Backing materialfoamed acrylic
Colordeep black
Total thickness2000 μm
Type of adhesivepure acrylic
Elongation at break1000 %

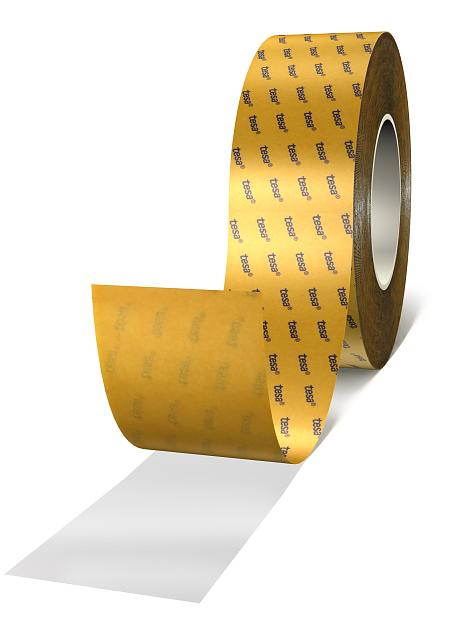

tesa® 51966

Double-sided transparent filmic tape

tesa® 51966 is a transparent double-sided tape consisting of a PET backing and a highly tackified acrylic adhesive.
tesa® 51966 features especially:
▪ Excellent combination of high initial tack and immediate adhesion
▪ Full suitability for long-term applications

Applications

Especially designed for converter and tape specialist business

Specifications

Items Specifications
Backing material PET
Color transparent
Total thickness 200 μm
Type of adhesive acrylic
Elongation at break 55 %
Tensile strength 20 N/cm

tesa® 60150 Adhesion Promoter Universal

Surface treatment to improve adhesion to various substrates

tesa® 60150 Adhesion Promoter Universal can be used to improve the adhesion of tesa’s superior arylic core tape offering (tesa® ACXplus) on various substrates including zinc, steel, and PP/EPDM. The UV-traceability of this adhesion promoter allows easy quality control during the application process.

Applications

This adhesion promoter is recommended for various substrates such as PVC, PP/EPDM, ABS, zinc, steel or aluminum. The compatibility with other surfaces should be tested accordingly.

Specifications

Items Specifications
Backing material light-yellow
Color liquid
Solids 7%
Viscosity 15 mPa s
Density 0.81 g/cm³
Spreading rate ca. 15 m²/l

tesa® 64958

1050 μm double sided PE foam tape

tesa® 64958 is a white double sided tape for general mounting with a PE foam backing and a synthetic rubber adhesive.

Applications

Construction of POS-displays

Specifications

Items Specifications
Backing material PE foam
Color white
Total thickness 1050 μm
Type of adhesive synthetic rubber
Elongation at break 200%
Tensile strength 7 N/cm
Type of liner glassine
